Double facer SM-F
★Heating plate surface by grinding treatment，hot plate width600mm.
★Preheat board is made of container board, in accordance with the national standard of pressure container, enclosed the pressure container certificate and inspection certificate.
★Hot plate with intensive gravitational roll structure.Pressure roller with lifting hydraulic structure
★heat pipe of the heating board three section of control temperature, temperature display.
★up cotton belt with double cylinder S cotton belt tensioning device.
★bottom cotton belt with s-shaped correction manually tensioning mechanism, structure simple and practical，under with manual fine-tuning。
★Drive roller coated with attached wear-resistant rubber ，showed a herringbone structure，With a high, ensure smooth cardboard output。
★Main drive motor for frequency conversion motor，low-speed torque，wide speed range ,reliable, and easy maintenance.
★hot plate internal for partition isolation structure,s-shaped flow of steam，Steam, water separation function significantly improves the utilization of steam
1、temperature requirement：160—200℃ steam pressure：0.8-1.3Mpa
2、air source pressure：0.6—0.9Mpa
3、Cooling stereotypes length：4m Heating plate quantity：14 pieces
4、Hydraulic system pressure:6—8Mpa max working width:200m/min
※Roller diameter parameters：
1、upper drive rubber roller diameter：￠440mm lower drive rubber roller diameter： ￠440mm Wear rubber Outsourcing
2、Former follower with roller diameter：￠270mm After setting belt driven roller diameter：￠186mm
3、pressure belt roller diameter：￠70mm Shaping roller diameter：￠86mm
4、The belt tension roller diameter：￠130mm The roll diameter with detuning：￠124mm
5、Under the belt tension roller diameter：￠130mm Entrusted with the roll diameter under the belt：￠130mm
Note: All the roller surface after grinding are hard chrome plated
※Powered motor parameters：
1、Main drive motor power：45KW 380V 50Hz Continuous (S1) working standard

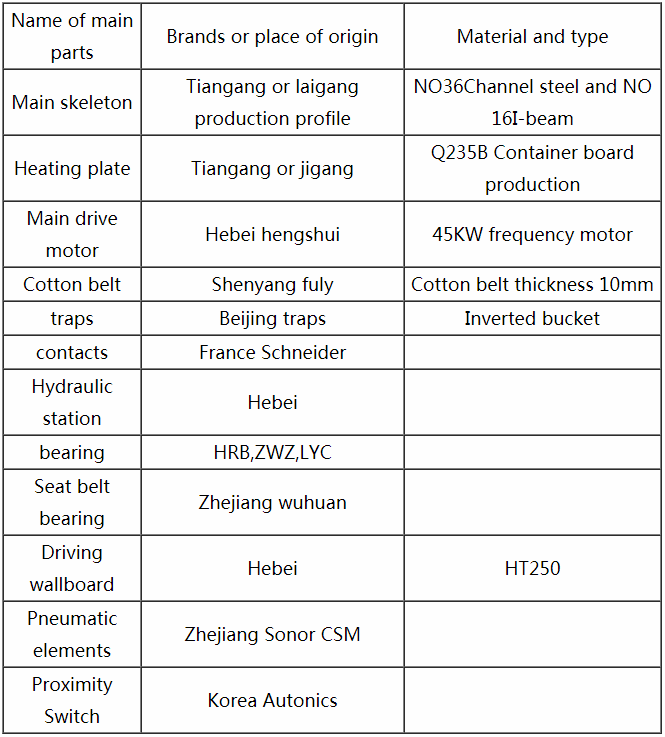

※Mainly purchased parts, raw materials and origin：
