Paper holder ZJ-F
★Symmetrical structure can also install two bundles of paper at the same time，Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld，paper car adopt 10mmwelded stell，the length of track is 6000mm。
★manual dics brake，add screw following
★electric elements centralized control the electric elements，toothed chuck.
1、the range of paper jams：maximum：1800mm minimum：600mm
2、the diameter of paper jams：maximum：￠1600mm minimum：￠400mm
3、Unilateral maximum load：maximum2000Kg
4、Powered motor parameters：
①Paper jams motor550W×4set 380V 50HZ short（S2）working standard
②lift motor 1.5KW 380V 50HZ short（S2）working standard

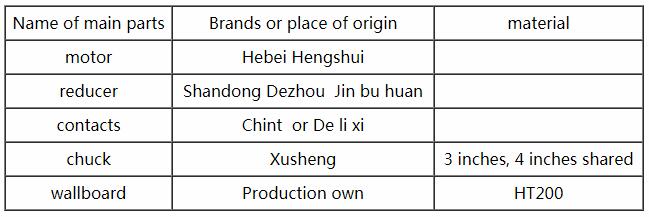

※Mainly purchased parts, raw materials and origin：
