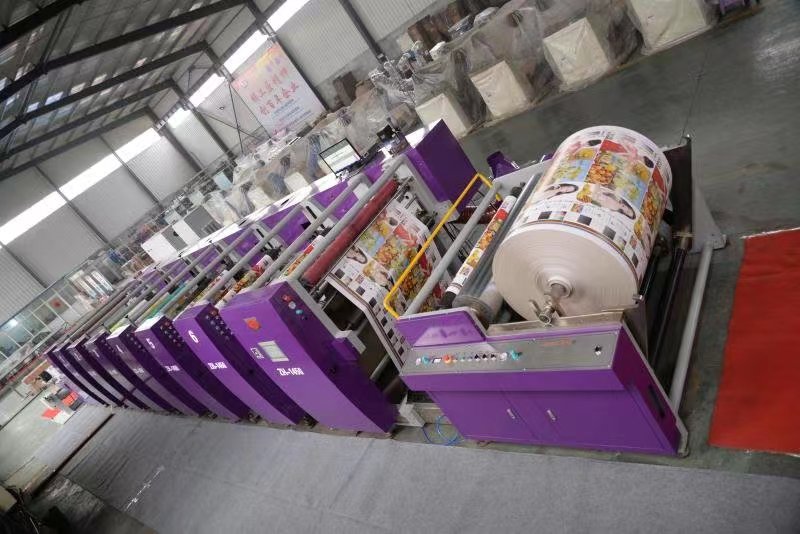

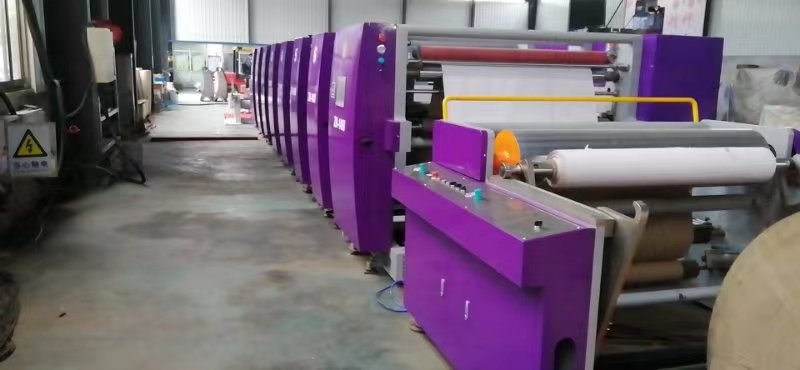

HT1450-6 color drive flexo printing machine configuration table

short description:


Product Detail

Product Tags

ea8f2a6cb89887f22353b9dc879f69b9b3afb43ba0c56f6219a400802b71cf

I. Basic configuration

1. clip arm unwinding unit 1 set

• Maximum unwinding diameter 1524 mm.

3 inches6 inches• Variable cone set

• Lifting paper shaft device: mainly used for the loading and unloading of paper rolls, without forklift or other loading and unloading tools

• Paper breaker stop device: machine stops automatically when paper is broken or broken





2. Automatic Correction System

Use ball screw electric actuator

• Transmitting induction of correction by using a rectified photoelectric head

• Electronic paper lead traction device, the system can be continuously and accurately corrected when small offset occurs during the movement of the paper

• Closed-loop control system with accurate feedback errors corrected in time

• Paper guide rollers are anodized with high hardness: HV800-1000.

• Detection method: edge detection

• Correction accuracy :±0.02 mm

1 set of paper binders



1 set of 3. adjustable paper feeding system (double pressure cots)

• Adopt Italian servo motor and control system

• Adopt integral alloy cast iron wall panels.

• Adopt double-pressure cots and press paper to ensure stable tension.

To realize stepless adjustment of printing paper tension.



4. Printed Colour 6 Group

Laser engraving ceramic roller 6(according to customer's product requirement)

• Each printing set has a roller mechanism

The printed wall panels and racks are cast with alloy cast iron material to effectively eliminate vibration and make the machine more stable and durable.

• Printing Roller 6(Customer Optional)

• Hand-operated horizontal focusing sleeve alignment, micro-range adjustment plate roller

• Vertical installation of 5 sets of automatic set-up systems (Weinan Competition)

• Italian servo motors and control systems for each group

Single knife reverse ink scraping system

Pneumatic clutch pressure of net roller and plate roller

Pneumatic slip system for roller and ink groove, with guide rail, can automatically exit instead of manual, can quickly replace roller

• Rapid replacement of plate rollers, stainless steel cartridges without any tools

Automatic cleaning printing plate function: after each stop, the plate roller continues to rotate 1.5 laps to transfer the printing ink on the plate to the paper, keep the plate clean.

• Rotation function of the net roller: The net roller will run automatically every time it stops, so as to prevent the ink from drying and fixing on the surface of the net roller, resulting in blockage of the net hole.

High precision micro-distance adjusting device for net roller to ensure pressure of ceramic net roller and plate roller

• Gear: cp1/8

Net roll, plate roll, bottom roll full runout :≤0.03 mm

• Bearing precision: class P5 bearings



5. drying system 1 set

• Each printed color set is equipped with an infrared short wave heating drying system with adjustable temperature

• Hot air and (natural) cold air blowing combination (including exhaust air fans) with adjustable air intake and exhaust

Three stalls: stop, bottom, height

The air duct is made of Korean Teflon

• Each group of independent fan circulation can achieve secondary return air

• Concentrated exhaust gas is discharged centrally through an exhaust machine.







6.1 set of synchronous stroboscopic color detection units

• Real-time image detection of printed matter in the printing process, which can be moved sideways

• The detection position can be set horizontally and vertically

• The detection image can be magnified, positioned and observed to ensure printing quality



7. Post-Paper-Paper-Paper Tension System

• Adopt Italian servo motor and control system

The post tension unit adopts integral alloy cast iron double wall panel

• Double-pressure cots press paper to ensure stable tension



1 set of 8. collection stations

• Maximum winding diameter 1524 mm (60″).

• Three inches and six inches each

Hydraulic lifting paper shaft device

The winding is driven by a motor and controlled by a tension-controlled frequency converter. The floating roll is controlled by constant tension

:: Equipped with a quick inflatable gun





Group 5 9. Automatic System







10. Dust removal system 1 set

:: High-pressure air suction using British Mickey technology to form a vortex flow, high-voltage electrostatic neutralization of positive and negative ions plus dust brush and dust collection box, characterized by clean and thorough dust removal, improve the quality of printing products

:: Ensure the removal of dust from the surface of the printing material to prevent the accumulation of dust blocking the roller, affecting the printing products.



11. Lubrication system 1 set

The automatic lubrication system of gears can adjust the time and quantity of lubrication. When the lubrication system fails and the lubricating oil is insufficient, the indicator light can alarm automatically.



12. One printer

:: High-precision Canon lens, including left and right symmetrical split screen display

:: Used for printing plates to achieve accurate multi-color overprint purposes

Can be used for rapid product-to-product replacement



13. A set of random tools

:: One set of specialized tools



II. Environmental requirements of the machine installation workshop

:: Workshop optimum temperature :20-26 degrees Celsius

:: Workshop optimum relative humidity :55-70 per cent

:: Workshop environment requirements: good ventilation, low air dust content.

:: Light source requirements: no special requirements, each printing group with light source, easy to clean printing plate

:: Compressed air requirements: flow rate per minute and pressure MP 0.60.6 m3

:: The installation of the ground shall be fixed by means of a footplate, and the hardened ground thickness shall not be less than that of a flat surface without the need for anchor boltscm 20
