Glue machine GM-20

short description:

Product Detail

Product Tags

※Structural features:
★after quenched of the glue roller surface,the hole machining, surface grinding and doing balancing engraved anilox pit type, coating evenly, less consumption of plastic
★glue roller turns is controlled by the frequency motor,by inverter control ensures glue roller line speed synchronous machine with double machine,they can operate independently。
★electric adjustment display the glue amount。Automatic cycle for glue, glue avoid sedimentation, viscosity stability。
★Pneumatic structure platen gap by electric tuning。On the next floor are made independent variable frequency motor drive。
★take the speed signal of the double facer,so as to synchronous operation with it. Man-machine interface display, easy operation
★amount of glue automatic adjustment control,amount of glue automatic adjustment with the produce speed, in automatic mode, you can also get in manual tuning.
※Technical parameters:
1、the highest design speed:200m/min
2、the Max. width:2200mm
3、air source system:0.4—0.6Mpa
4、operation direction:left or right(determined by customer’s factory)
※Roller diameter parameters:
1、glue roller:¢269mm    doctor roller:¢142mm
2、press paper shaft:¢155mm
3、 over paper roller diameter:¢110mm
※Powered motor parameters:
1、glue roller initiative  motor:3KW     380V     50Hz    Continuous (S1) working standard
2、glue  adjustment reducer:    100W     380V     50Hz    short(S2)working system
3、pressure roller gap adjustment motor:  100W    380V     50Hz    short(S2)working system
4、glue pump motor:     2.2KW       380V     50Hz    Continuous (S1)working system

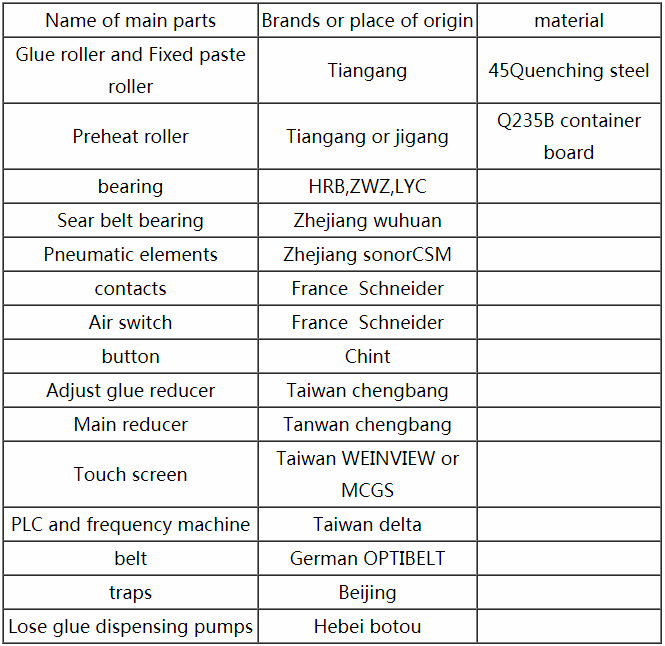

※Mainly purchased parts, raw materials and origin:
