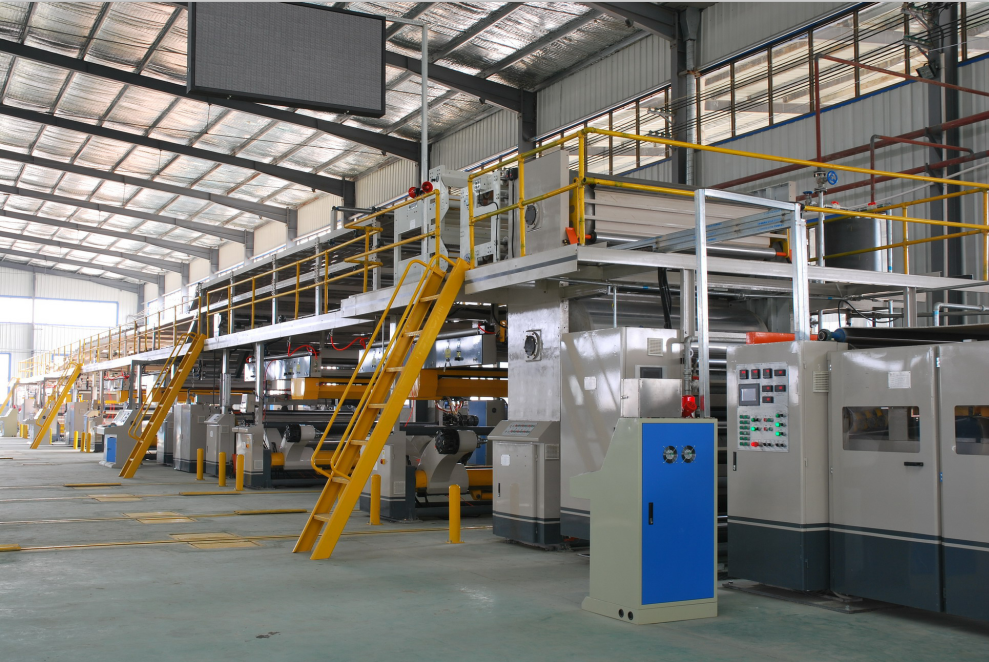

ZJ-V5B hydraulic shaftless mill roll stand

※structural feature

★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

★brake adjustable adopts multipoint braking system.

★every stand matched two sets paper car , and  they can paper on the both sides at the same time.

※technical parameters

1the range of clamping paperMAX2200mm MIN1000mm  2clamping diametersMAX1500mm MIN350mm

3main shaft diameter of paper holder:¢240mm    4gas source work pressureMpa):0.4—0.8Mpa

5equipment sizeLmx4.3*Wmx1.8*Hmx1.6              6single weightMAX4000Kg

※Hydraulic system parameters

1、Work pressure(Mpa):16—18Mpa                2、lifting hydraulic cylinder:¢100×440mm

3.Clamping hydraulic cylinder:¢63×1300m         4、hydraulic station motor power:3KW –380V — 50Hz

2、5、solenoid valve voltage:220V  50 Hz
